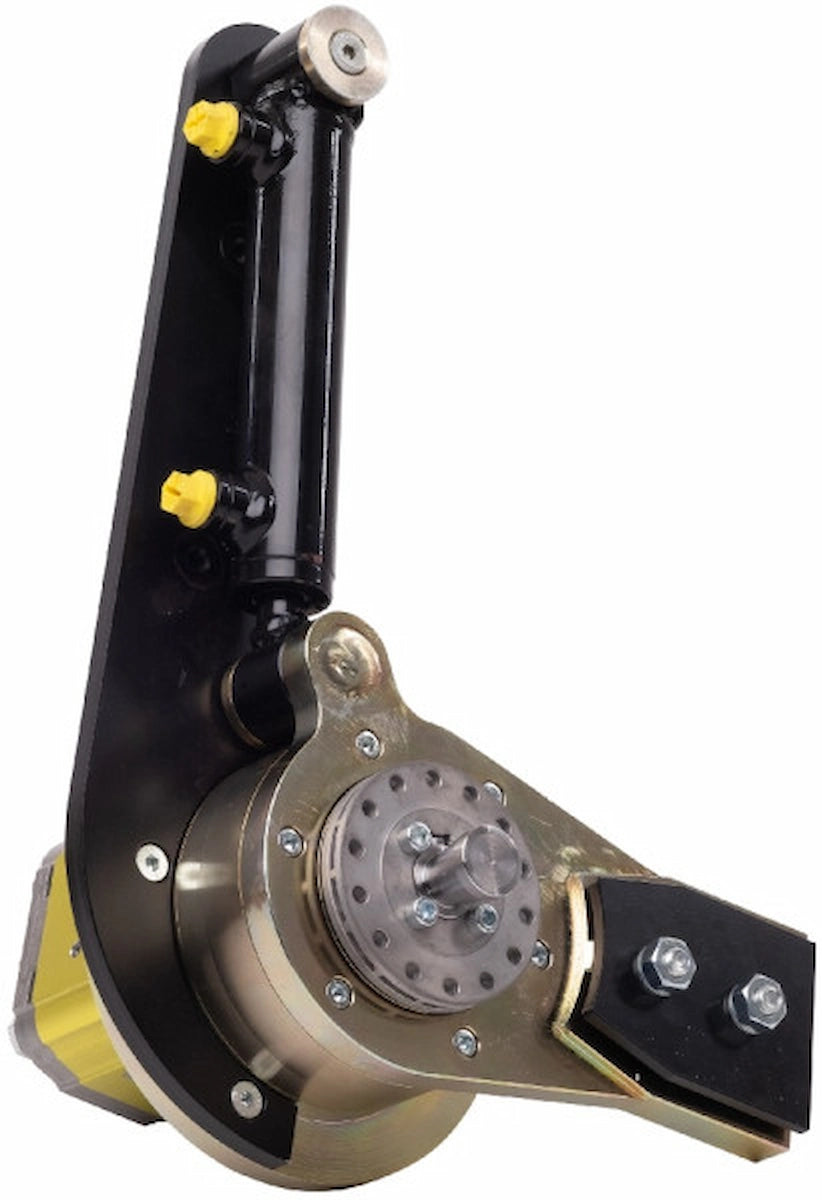

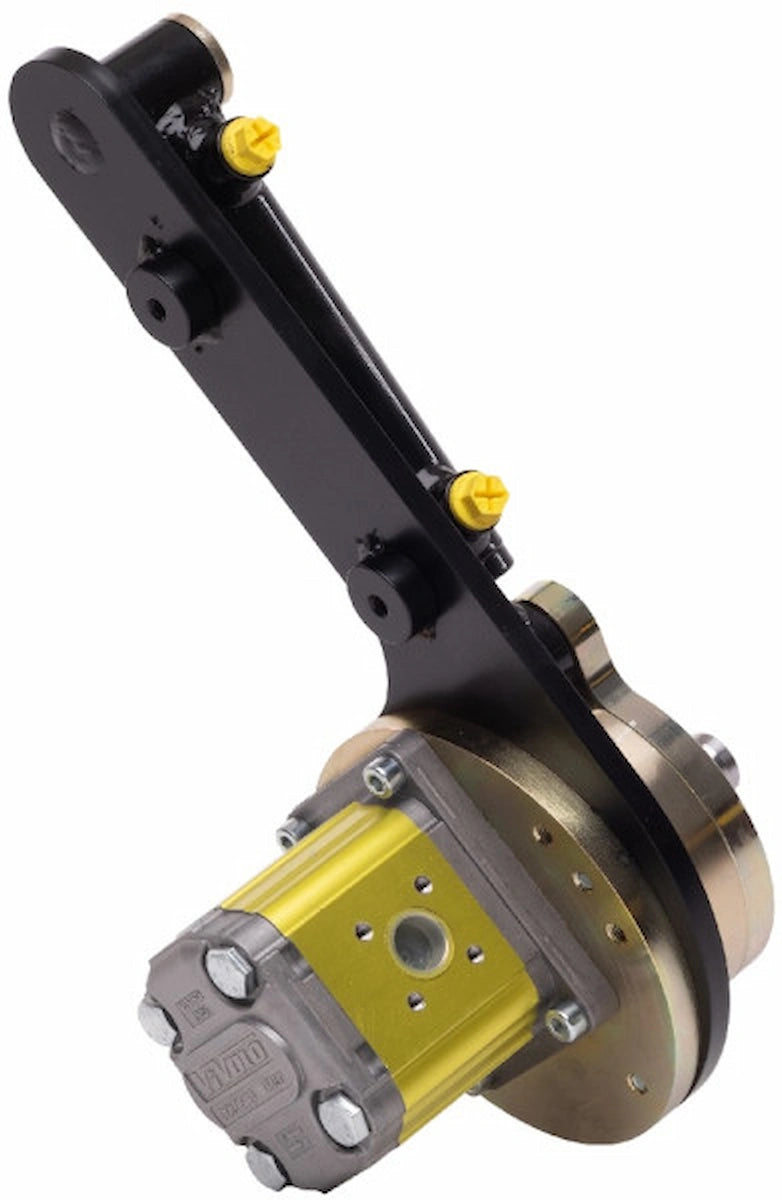

Cutmaster Basic

The Cutmaster Basic has been specially developed for use in cross-cutting devices, saw-splitter automatics, and bundle saws.

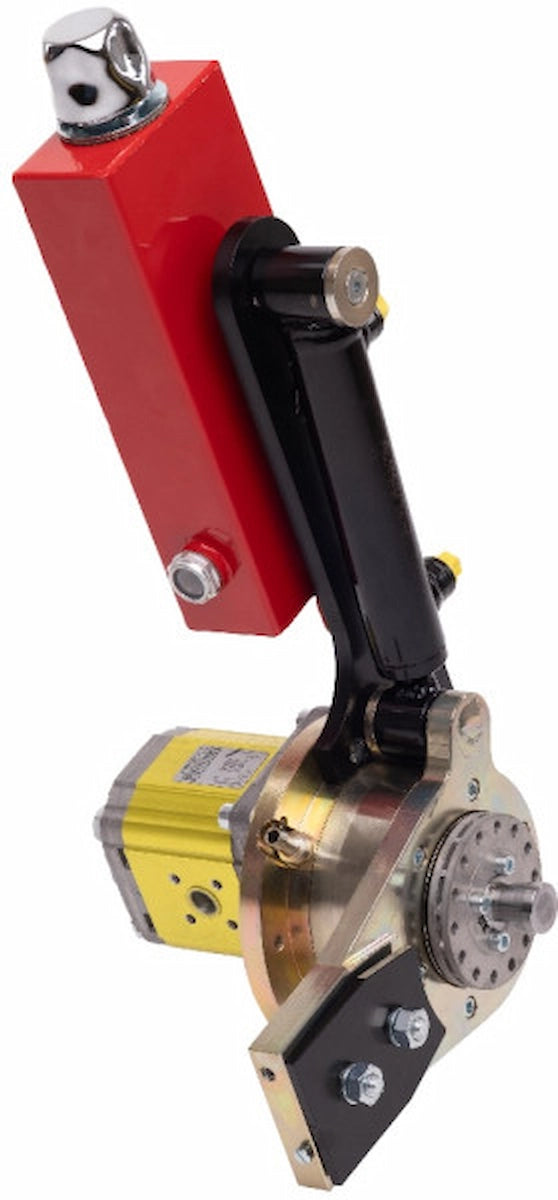

Thanks to the wide selection of bar lengths (54cm to 135cm), the Cutmaster Basic can be used very flexibly. The chain is tensioned by an adjusting screw and lubricated by the integrated lubrication system.

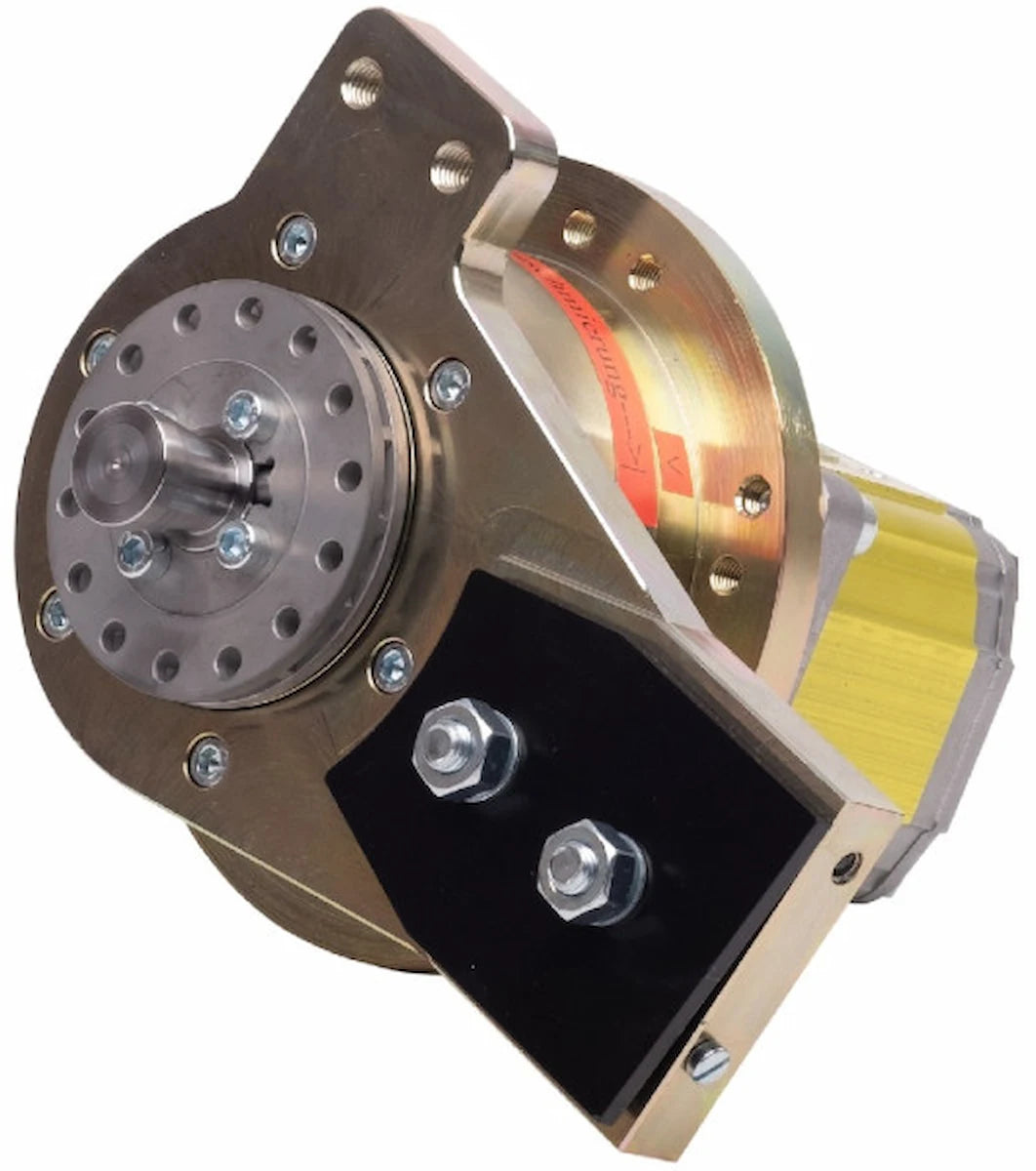

Another special feature of the Cutmaster Basic is that the motor and the swivel system are precisely aligned on one axis. This means the motor does not move during the sawing process, and the hoses are not moved back and forth.

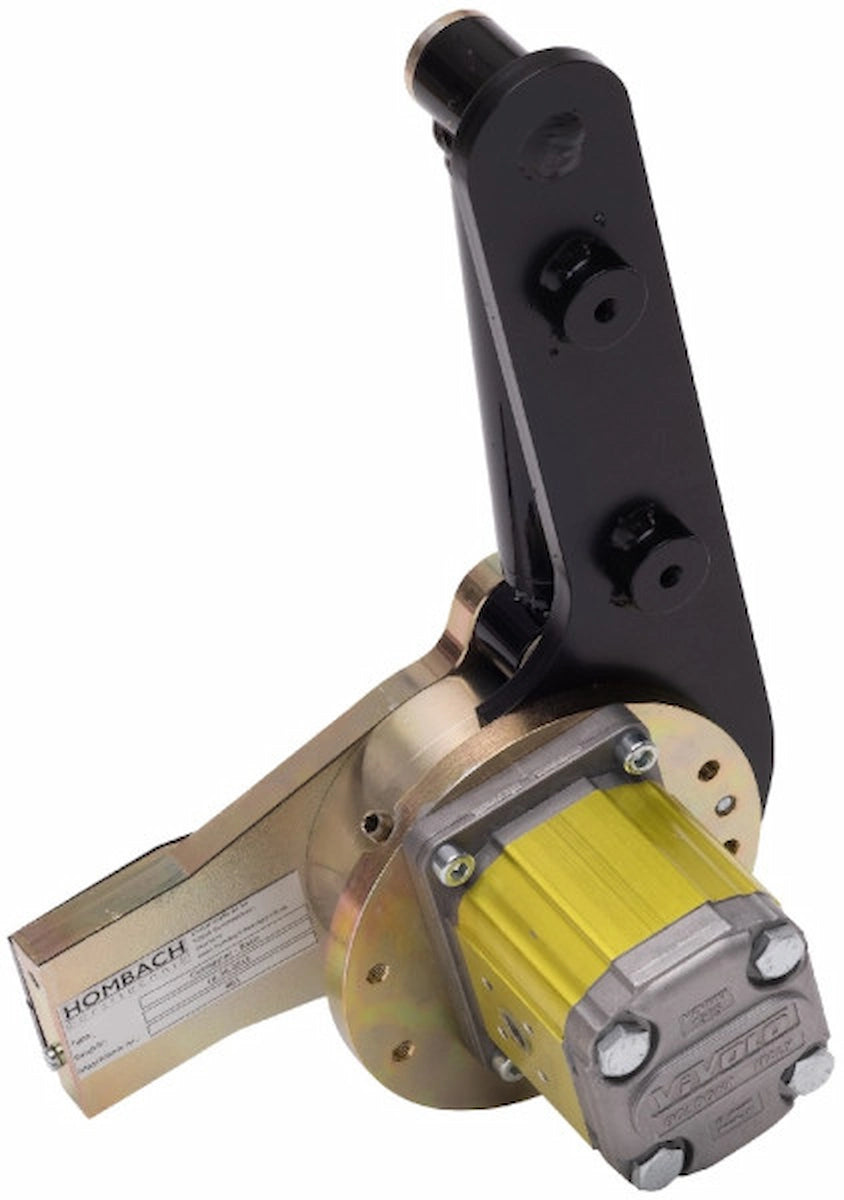

The saw is available with powerful hydraulic motors from a renowned Italian manufacturer in various sizes. The stated power of the motors is at a pressure of 200 bar. A maximum load of up to 250 bar is possible.

Motor Sizes

• 6 KW (max. 21 liters/min)
• 9.3 KW (max. 31.5 liters/min)
• 14.4 KW (max. 50.4 liters/min)

At the maximum liter output of the respective motor, the saw has a cutting speed of approx. 20.3 m/s

Bar Lengths

• 54cm
• 64cm
• 75cm

• 90cm
• 100cm
• 135cm

The usable length is bar length - 10cm
